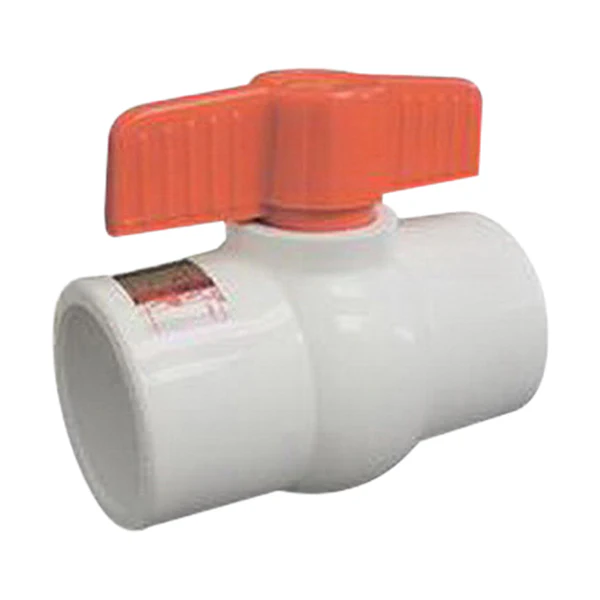

Ball Valve 3 in Slip, 150 Psi, PVC Body, Red
Engineered for solvent weld installation, this 3 in slip-on ball valve features a molded-in-place PVC body and ball construction. The unit is rated for 150 psi pressure at 73 degrees Fahrenheit and provides a 438.31 Cv flow capacity. Designed with a 2-port configuration, it utilizes an EPDM stem seal O-ring and PTFE seat seal to maintain system integrity. The assembly includes a zinc plated steel bolt and an ABS cap and handle for manual operation. Measuring 8.93 inches long by 5.19 inches wide and 7.41 inches high, the valve body is built to absorb severe shock loads and misalignment stress, protecting the internal ball and seat from uneven wear and potential leakage.
$21.79
Original: $62.26
-65%Ball Valve 3 in Slip, 150 Psi, PVC Body, Red—
$62.26
$21.79Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Engineered for solvent weld installation, this 3 in slip-on ball valve features a molded-in-place PVC body and ball construction. The unit is rated for 150 psi pressure at 73 degrees Fahrenheit and provides a 438.31 Cv flow capacity. Designed with a 2-port configuration, it utilizes an EPDM stem seal O-ring and PTFE seat seal to maintain system integrity. The assembly includes a zinc plated steel bolt and an ABS cap and handle for manual operation. Measuring 8.93 inches long by 5.19 inches wide and 7.41 inches high, the valve body is built to absorb severe shock loads and misalignment stress, protecting the internal ball and seat from uneven wear and potential leakage.
